型號規格

型號Type	正向峰值電流 Peak forward voltage	正向峰值電壓 Peak forward voltage	反向重復峰值電流 Repetitive peak voltage	反向重復峰值電壓 Repetitive peak current	絕緣電壓Insulation voltage	工作結溫Temperature rise	Fix power	Wind speed
	(A)	(A)	(mA)	(V)	(V)	(℃)	(N.M.)	(m/s)

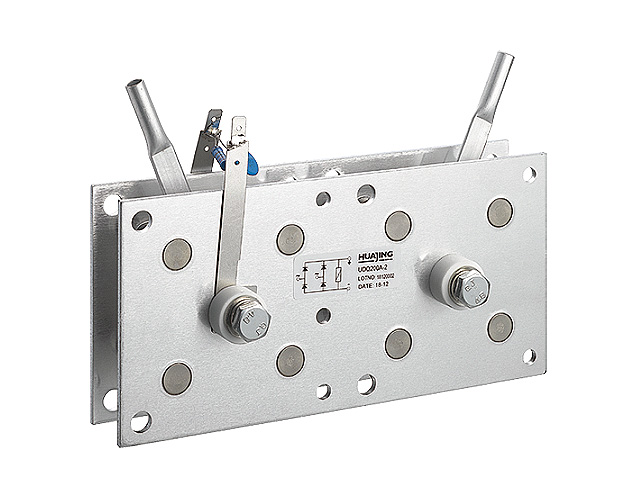

UQD100A	100	≥600	≤3	≤1.2	150	≤55	≥12.5	3.0
UQD150A	150	≥600	≤4	≤1.2	150	≤60	≥12.5	3.0
UQD200A	200	≥600	≤5	≤1.3	150	≤60	≥12.5	3.0
UQD250A	250	≥600	≤5	≤1.3	150	≤65	≥12.5	3.0
UQD300A	300	≥600	≤6	≤1.3	150	≤80	≥12.5	3.0
UQD400A	400	≥600	≤6	≤1.4	150	≤85	≥12.5	3.0
UQD500A	500	≥600	≤7	≤1.4	150	≤90	≥12.5	3.0

型號Type	正向峰值電流 Peak forward voltage	正向峰值電壓 Peak forward voltage	反向重復峰值電流 Repetitive peak voltage	反向重復峰值電壓 Repetitive peak current	絕緣電壓Insulation voltage	工作結溫Temperature rise	Fix power	Wind speed
	(A)	(A)	(mA)	(V)	(V)	(℃)	(N.M.)	(m/s)

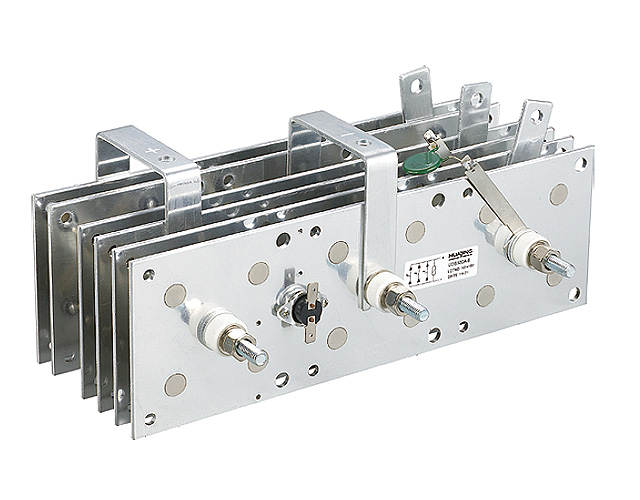

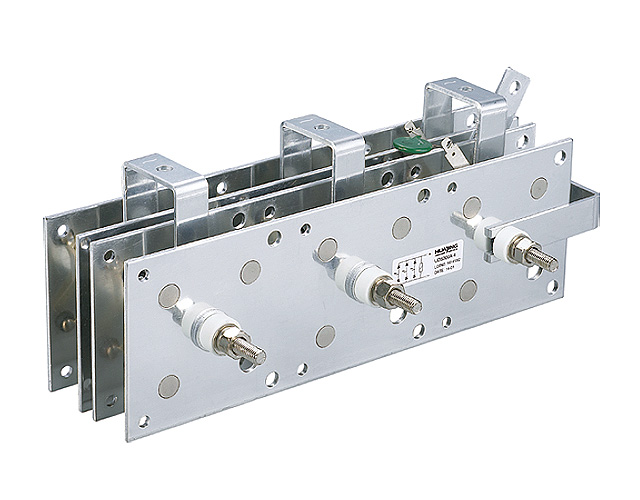

UQS100A	100	≥600	≤3.5	≤1.30	150	≤55	≥12.5	3.0
UQS150A	150	≥600	≤4.0	≤1.30	150	≤60	≥12.5	3.0
UQS200A	200	≥600	≤5.5	≤1.35	150	≤60	≥12.5	3.0
UQS250A	250	≥600	≤6.0	≤1.35	150	≤65	≥12.5	3.0
UQS300A	300	≥600	≤6.5	≤1.35	150	≤80	≥12.5	3.0
UQS400A	400	≥600	≤8.0	≤1.40	150	≤85	≥12.5	3.0
UQS500A	500	≥600	≤10.0	≤1.40	150	≤85	≥12.5	3.0
UQS600A	600	≥600	≤10.0	≤1.45	150	≤90	≥12.5	3.0
