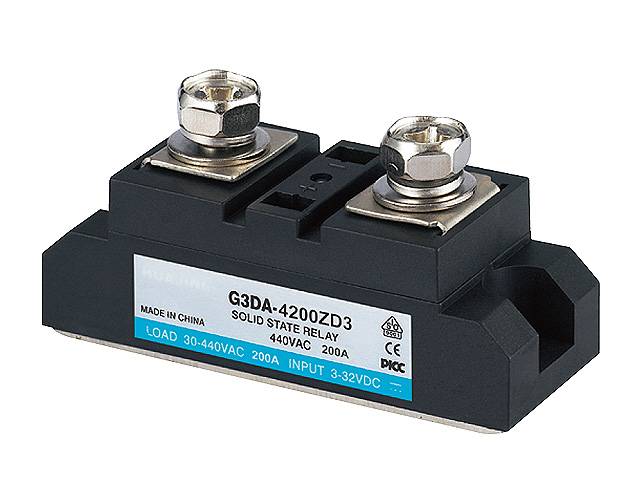

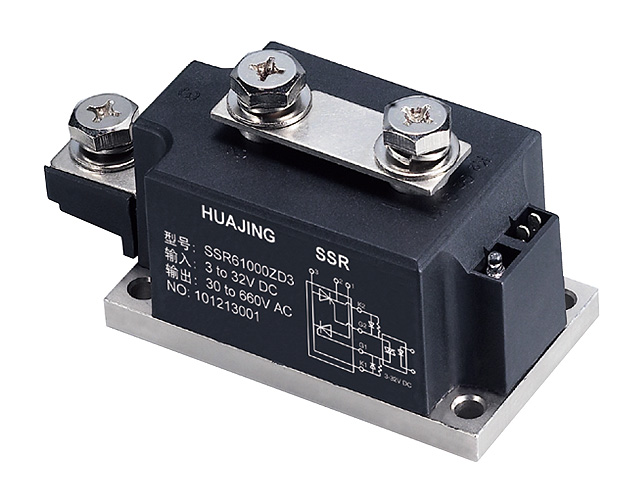

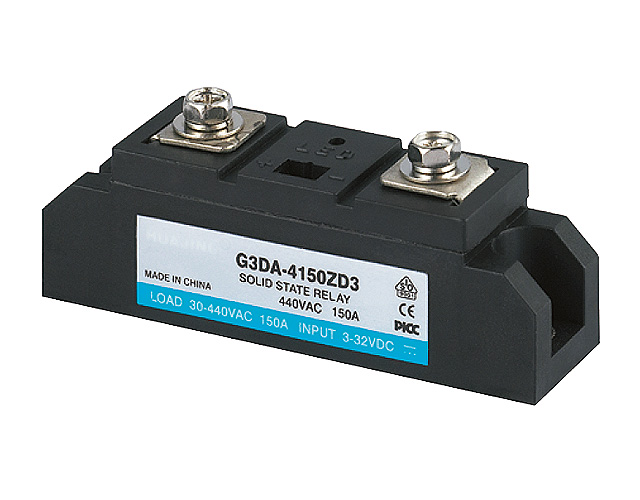

HDH200~1000A單相固態(tài)繼電器
返回
  • 特點
  • 選型指南
特點
? 額定工作電流：200-350Amps
? 額定工作電壓：280V或480V
? 輸入電壓范圍：4-16Vdc，3-32Vdc或90-280Vac
? 4000Vrms光隔離(輸入/輸出)
? “零壓”型及調相“隨機開關”型
? 控制輸入LED指示器
選型指南
電壓Voltage 控制電壓Control voltage 額定工作電流Rated operational current
    200 Amp 250 Amp 300 Amp 400 Amp 500 Amp 800 Amp 1000 Amp
280VAC
"Zero Voltage" 		4 to 16 Vdc HDH20028ZD1 HDH25028ZD1 HDH30028ZD1 HDH40028ZD1 HDH50028ZD1 HDH80028ZD1 HDH010028ZD1
3 to 32 Vdc HDH20028ZD3 HDH25028ZD3 HDH30028ZD3 HDH40028ZD3 HDH50028ZD3 HDH80028ZD3 HDH100028ZD3
90 to 280 Vac HDH20028ZA4 HDH25028ZA4 HDH30028ZA4 HDH40028ZA4 HDH50028ZA4 HDH80028ZA4 HDH100028ZA4
280VAC
“Random Switching” 		4 to 16 Vdc HDH20028RD1 HDH25028RD1 HDH30028RD1 HDH40028RD1 HDH50028RD1 HDH80028RD1 HDH010028RD1
3 to 32 Vdc HDH20028RD3 HDH25028RD3 HDH30028RD3 HDH40028RD3 HDH50028RD3 HDH80028RD3 HDH100028RD3
90 to 280 Vac HDH20028RA4 HDH25028RA4 HDH30028RA4 HDH40028RA4 HDH50028RA4 HDH80028RA4 HDH100028RA4
480VAC
"Zero Voltage" 		4 to 16 Vdc HDH20048ZD1 HDH25048ZD1 HDH30048ZD1 HDH40048ZD1 HDH50048ZD1 HDH80048ZD1 HDH010048ZD1
3 to 32 Vdc HDH20048ZD3 HDH25048ZD3 HDH30048ZD3 HDH40048ZD3 HDH50048ZD3 HDH80048ZD3 HDH100048ZD3
90 to 280 Vac HDH20048ZA4 HDH25048ZA4 HDH30048ZA4 HDH40048ZA4 HDH50048ZA4 HDH80048ZA4 HDH100048ZA4
480VAC
“Random Switching” 		4 to 16 Vdc HDH20048RD1 HDH25048RD1 HDH30048RD1 HDH40048RD1 HDH50048RD1 HDH80048RD1 HDH010048RD1
3 to 32 Vdc HDH20048RD3 HDH25048RD3 HDH30048RD3 HDH40048RD3 HDH50048RD3 HDH80048RD3 HDH100048RD3
90 to 280 Vac HDH20048RA4 HDH25048RA4 HDH30048RA4 HDH40048RA4 HDH50048RA4 HDH80048RA4 HDH100048RA4

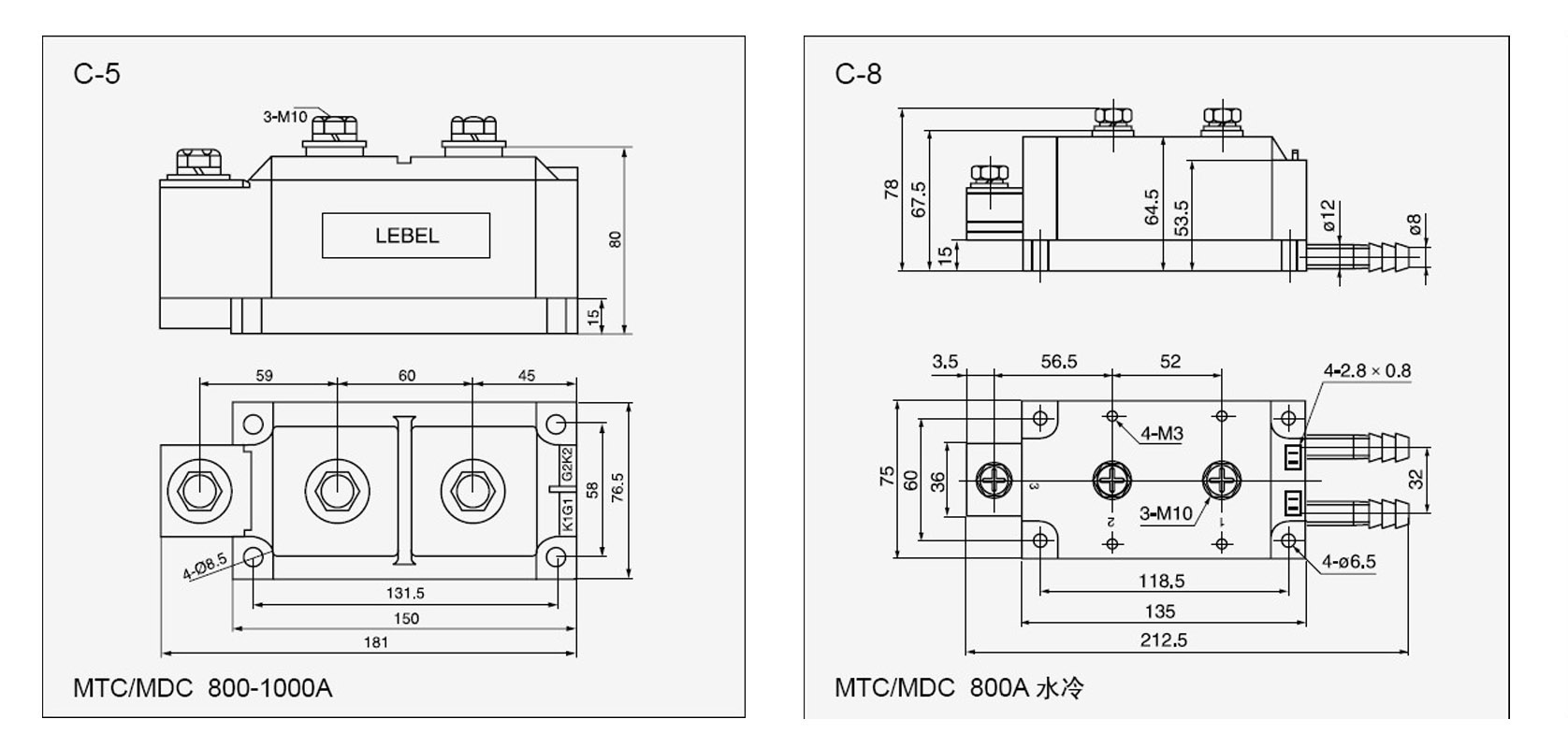

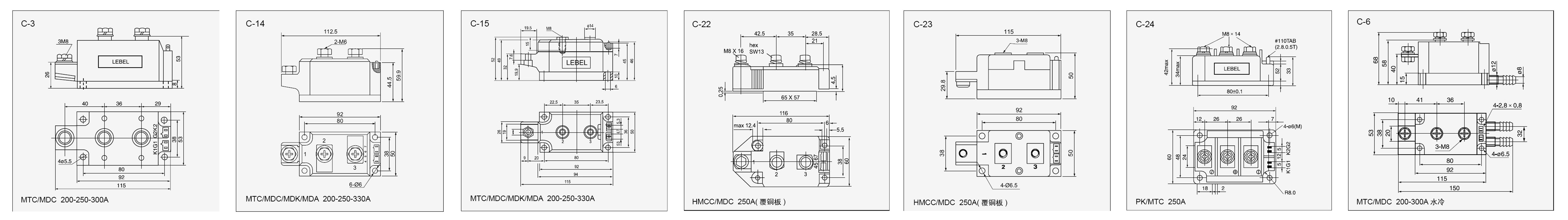

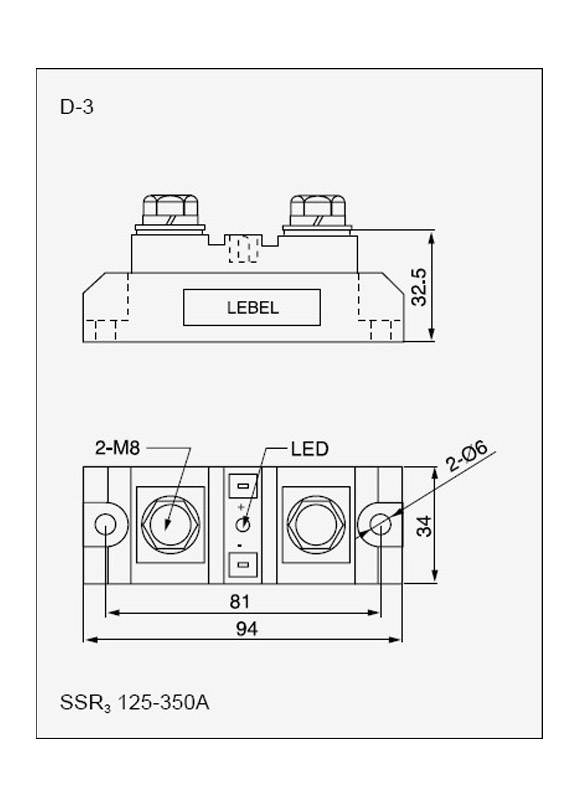

Outline   D-3 D-3 D-3 D-3 C-3,14,15,22,23,24,6 C-3,14,15,22,23,24,6 C-5,8
