Type
|
VDRM
(VRRM)
|
Irr
(IDRM)
|
IT(AV)
(Tc ℃)
|
ITSM
10ms
|
VTM/ITM
|
VGT
|
IGT
|
dv/dt
|
di/dt
|
Tjmax
|
Rth(j-c)
|
Weight
|
Outline
|
|
|
V
|
mA
|
A
|
kA
|
V/A
|
V
|
mA
|
V/mks
|
A/mks
|
℃/W
|
℃/W
|
kg
|
|
|
T123-200
|
400-6500
|
150.0
|
200(95)
|
4.00
|
1.90/628
|
2.5
|
≤200
|
≥500
|
30
|
125
|
0.08
|
0.070
|

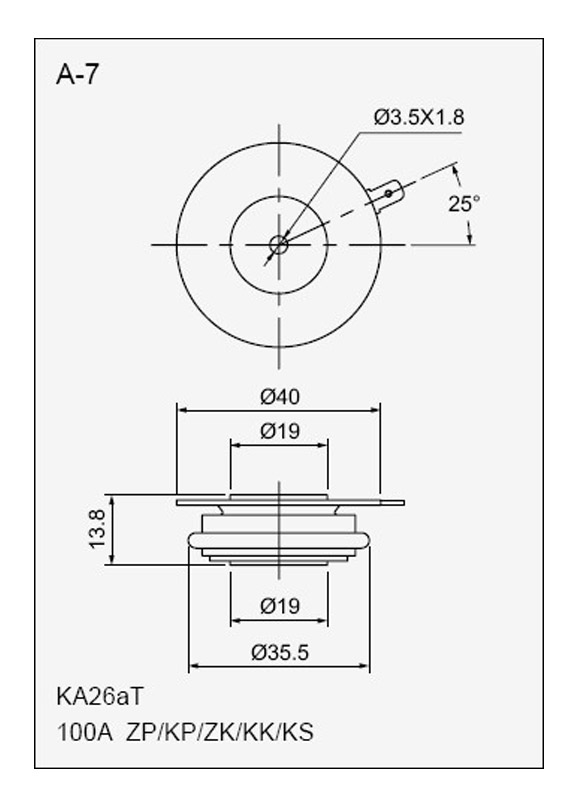

A-7
|
|
T123-250
|
400-6500
|
150.0
|
250(92)
|
4.50
|
1.75/785
|
2.5
|
≤200
|
≥500
|
30
|
125
|
0.08
|
0.070
|
|
T123-320
|
400-6500
|
150.0
|
320（90）
|
5.00
|
1.75/1005
|
2.5
|
≤200
|
≥500
|
30
|
125
|
0.075
|
0.070
|
|
T133-400
|
400-6500
|
30.0
|
400（93）
|
8.00
|
1.75/1256
|
2.5
|
≤200
|
≥500
|
100
|
125
|
0.045
|
0.018
|

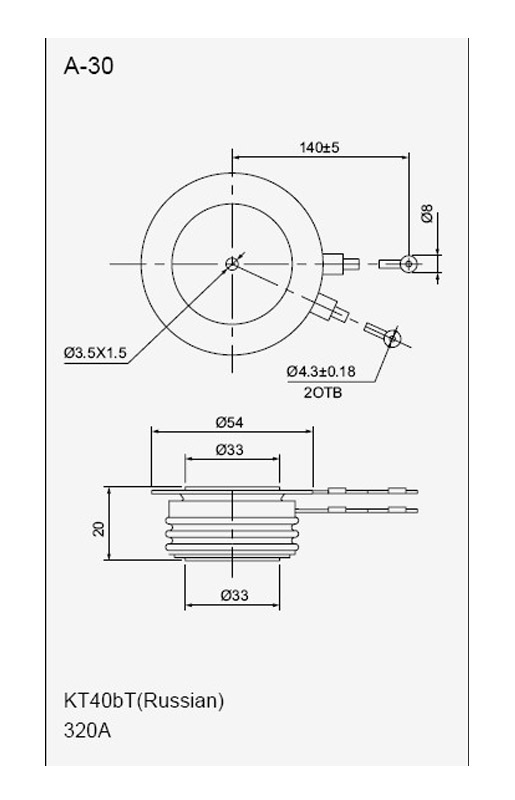

A-30
|
|
T133-500
|
400-6500
|
50.0
|
500（120）
|
10.00
|
1.50/1570
|
2.5
|
≤250
|
≥500
|
100
|
125
|
0.035
|
0.100
|
|
T133-630
|
400-6500
|
50.0
|
630（120）
|
12.00
|
1.45/1980
|
2.5
|
≤250
|
≥500
|
100
|
125
|
0.035
|
0.100
|
|
T143-400
|
400-6500
|
50.0
|
400（96）
|
9.00
|
2.15/1256
|
2.5
|
≤300
|
≥1000
|
250
|
125
|
0.034
|
0.240
|

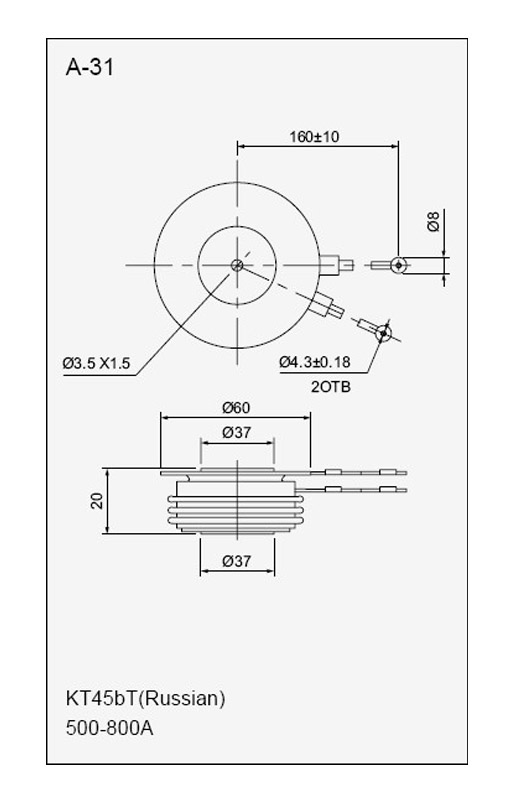

A-31
|
|
T143-500
|
400-6500
|
30.0
|
500（94）
|
11.00
|
1.80/1570
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.034
|
0.240
|
|
T143-630
|
400-6500
|
30.0
|
630（93）
|
13.00
|
1.65/1978
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.03
|
0.240
|
|
T143-800
|
400-6500
|
30.0
|
800（85）
|
14.00
|
1.75/2512
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.03
|
0.240
|
|
T143-1000
|
400-6500
|
70.0
|
1000（100）
|
19.00
|
1.50/3140
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.028
|
0.160
|
|
T153-630
|
400-6500
|
50.0
|
630（93）
|
15.00
|
2.10/1978
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.024
|
0.500
|

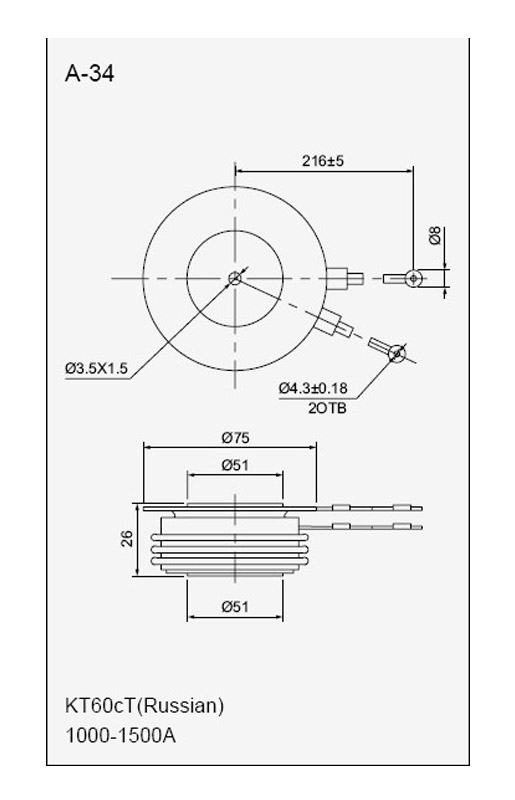

A-34
|
|
T153-800
|
400-6500
|
50.0
|
800（90）
|
20.00
|
1.90/2512
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.024
|
0.500
|
|
T153-1600
|
400-6500
|
100.0
|
1600（100）
|
30.00
|
1.50/5024
|
2.5
|
≤200
|
≥1000
|
250
|
125
|
0.016
|
0.330
|
|
T153-2000
|
400-6500
|
100.0
|
2000(95)
|
36.00
|
1.45/6280
|
2.5
|
≤200
|
≥1000
|
250
|
125
|
0.016
|
0.330
|
|
T253-500
|
400-6500
|
150.0
|
530（80）
|
10.00
|
2.40/1570
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.026
|
0.550
|
A-34
|
|
T253-800
|
400-6500
|
70.0
|
800（91）
|
17.00
|
2.10/2500
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.020
|
0.550
|
|
T253-1000
|
400-6500
|
70.0
|
1000（88）
|
22.00
|
1.80/3140
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.020
|
0.550
|
|
T253-1250
|
400-6500
|
70.0
|
1250（92）
|
28.000
|
1.60/3925
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.018
|
0.550
|
|
T173-2000
|
400-6500
|
200.0
|
2000（90）
|
49.00
|
1.65/6280
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.011
|
1.200
|

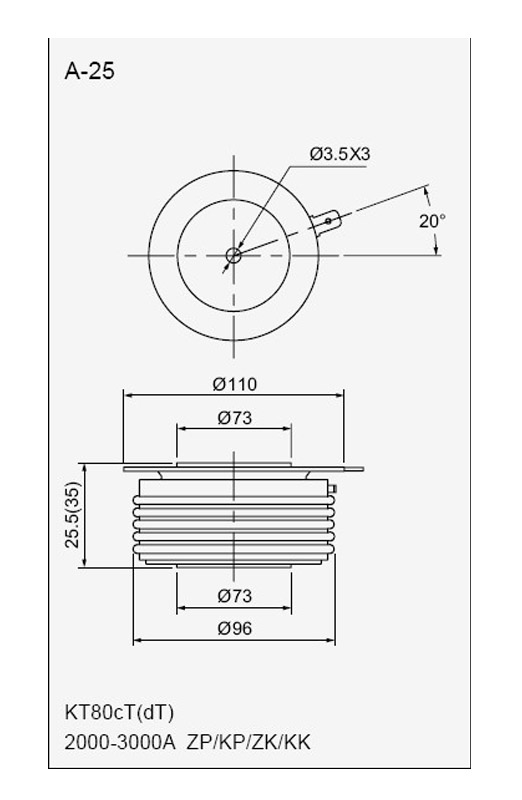

A-25
|
|
T173-2500
|
400-6500
|
100.0
|
2700（85）
|
52.00
|
1.70/7850
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.010
|
1.200
|
|
T173-3200
|
400-6500
|
200.0
|
3360（95）
|
60.00
|
1.50/10050
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.010
|
1.200
|
|
T173-4000
|
400-6500
|
200.0
|
4000（85)
|
62.00
|
1.50/12560
|
2.5
|
≤250
|
≥1000
|
250
|
125
|
0.010
|
1.200
|
Note:
■IGT、VGT、IH are test values under 25℃ . Unless otherwise specified,other parameters in the parameter table are test values under Tjm.
■I2t=I2TSM×tw/2:tw=bottom width of half-sinusoid current. Under 50Hz，I2t=0.00512TSM(A2S)
■When working under the current of 60 Hz:ITSM(8.3ms)=ITSM(10M=ms)×1.066，Tj=Tjm I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm
■Gate lead： white or colorless,cathode lead (if necessary): red
